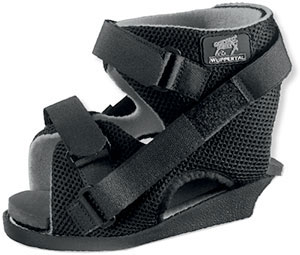

Wuppertal

Product Information


Indications

WUPPERTAL is particularly suited for patients with wounds at the heel area on the sole of the foot (e.g. caused by traumatic injuries) or operations after other injuries at the heel area (e.g. heel spur) who need a shoe with shortened sole, tall shaft and without heel support.

Shoe types

The heel relief shoe WUPPERTAL is symmetric and can be worn on the left as well as on the right.

Sole Design

WUPPERTAL has a 30mm thick, in the forefoot area partially flexible 5° wedge sole (20:80) without heel support. Due to the dorsally shortened sole, the foot's heel to toe movement is changed and the heel area is completely relieved.

Insoles

The shoe is delivered with a simple insole made of EVA material.

Special features

WUPPERTAL provides an open toe and heel area and can be adapted to different needs by using the un-usual hook and loop fasteners

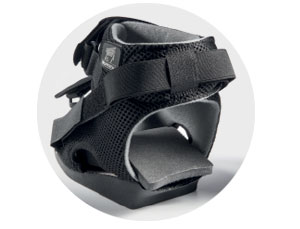

Wuppertal detail Wuppertal detail

Size chart and product codes

WUPPERTAL

Shoe Size Inner Shoe Dimensions Code
a c
S 35 - 37 85 mm 214 mm FO2000-S
M 38 - 40 93 mm 235 mm FO2000-M
L 41 -42 94 mm 251 mm FO2000-L
XL 43 - 46 98 mm 265 mm FO2000-XL
