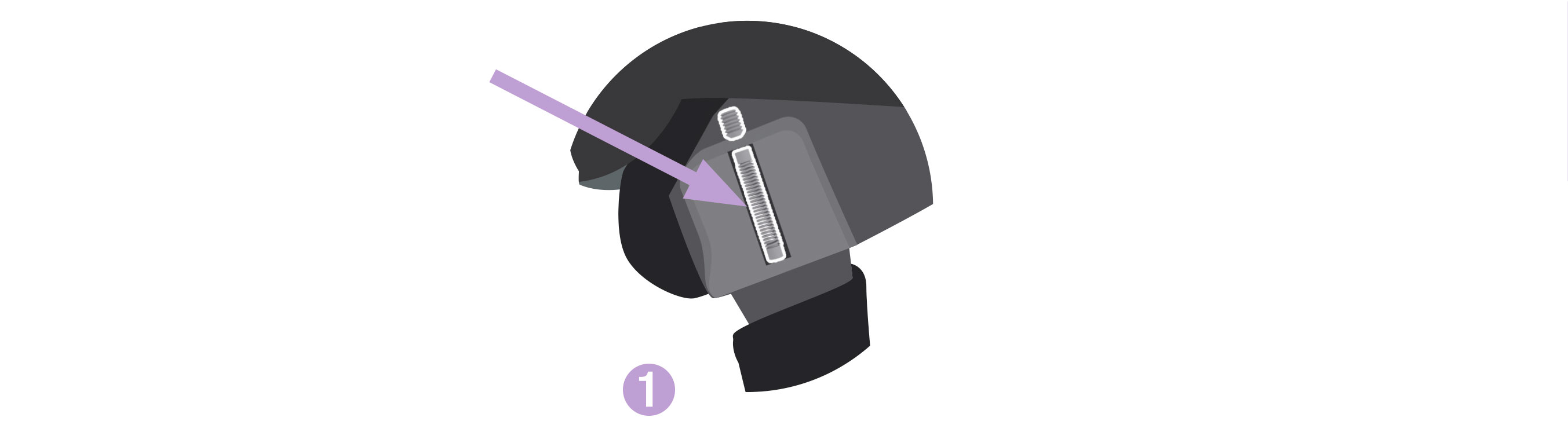

• The hinge mechanism of your Step-On AFO includes a Spring 1
• The Spring creates the active dynamic force within your brace.
• For your Step-On to work, the Spring must be fully functional. The Spring is a moving part incurring daily wear and tear, meaning that at some point in time it will have to be replaced.
• Its lifetime is dependent on the activity levels and weight of the user.
• Increased compression of the Spring, indicated as necessary by your clinician to optimise gait, may also reduce its lifetime.

The manufacturer recommends that you check the functionality of your Step-On AFO every day.

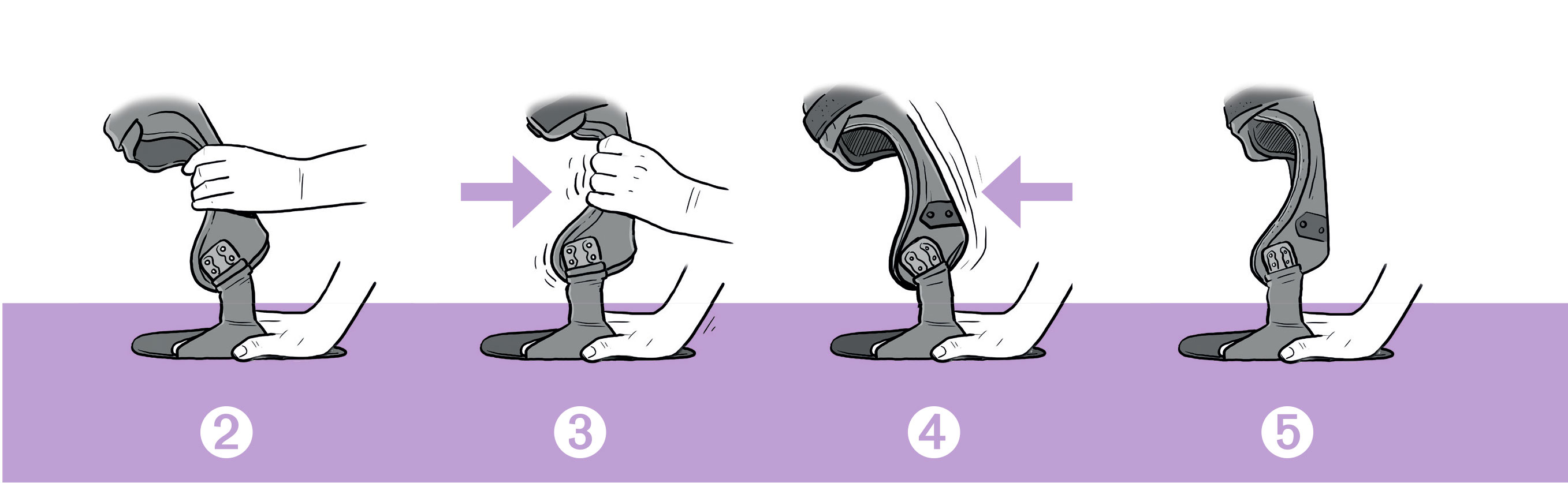

Checking the functionality of your Step-On AFO

• Place your Step-On AFO onto a fl at surface (table, fl oor, etc.) 2
• Stabilise the brace and then pull back on the section that surrounds your calf. 3
• Whilst keeping the brace stable at its base, release the calf section. 4
• If the calf section returns with force to its original position, then your brace is functional and ready for use.
• If the calf section does not return with any degree of force to its original position, then the Spring may be damaged and you should stop using your Step-On AFO. 5

• Your Step-On AFO should not be used for any purpose other than walking. You should not take part in athletic activities, such as running, jumping etc. and you should not drive whilst using this brace.

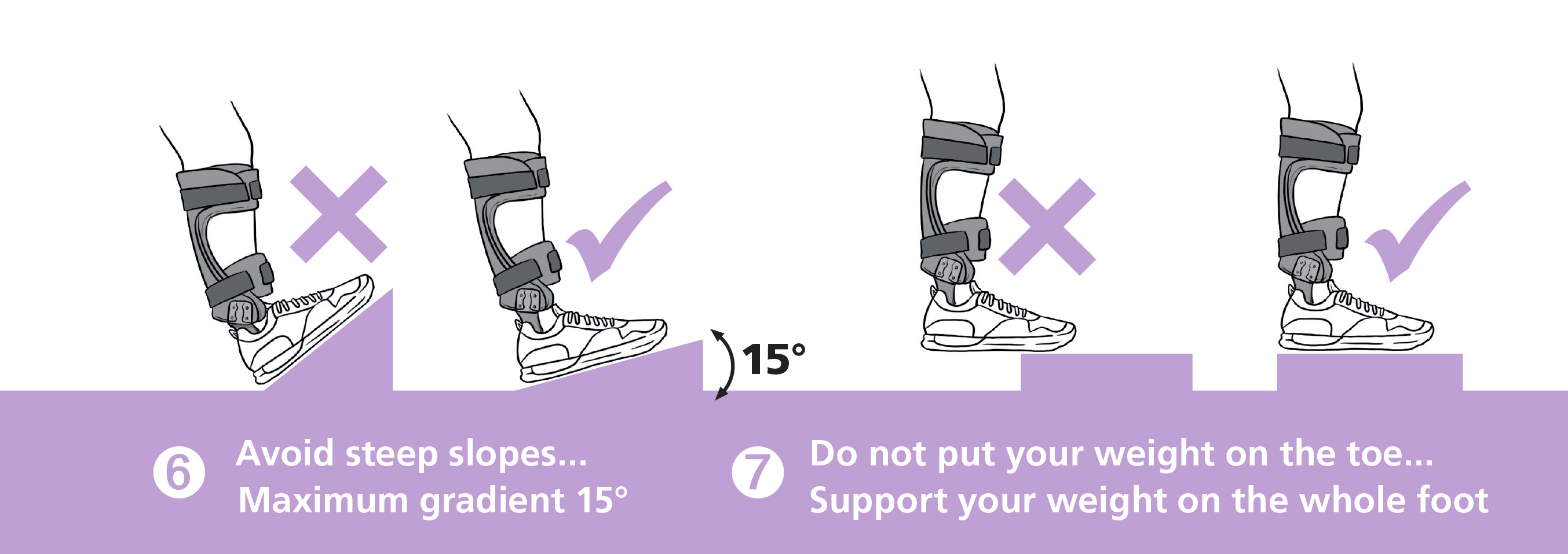

• The Step-On is designed to allow enough movement to enable users to participate in activities of daily living like climbing stairs and managing gentle slopes. It is suitable to be used on gradients of up to 15°. 6

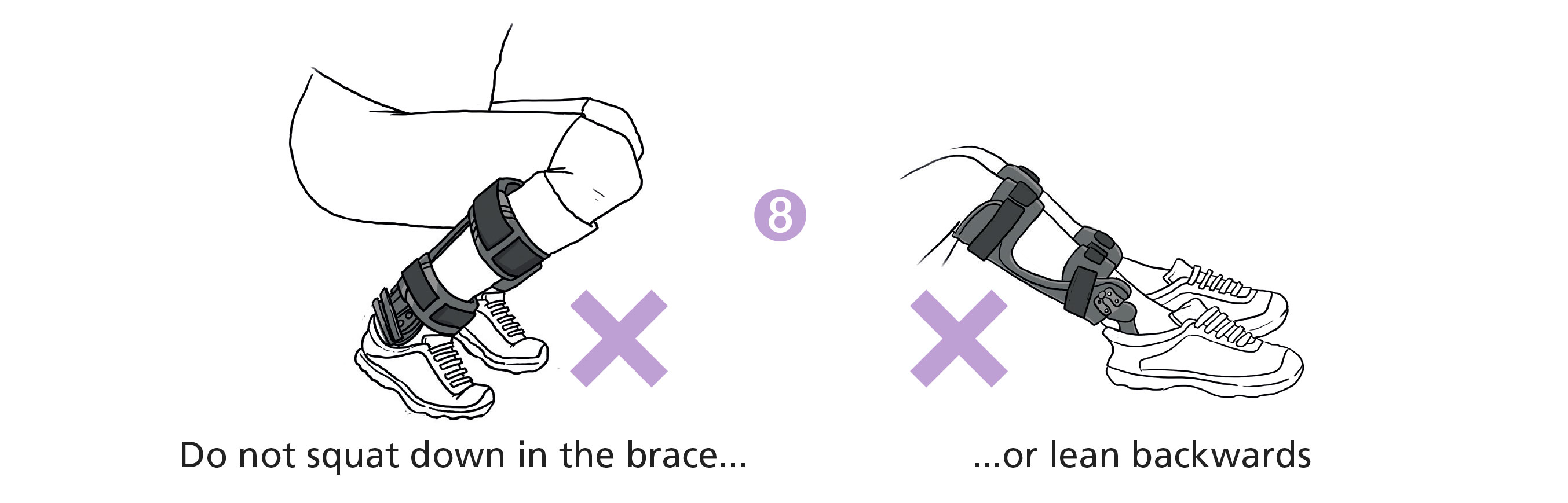

• Make sure you place your whole foot on the step/stair when climbing 7and avoid excessive bending of your foot such as squatting or leaning backwards. 8

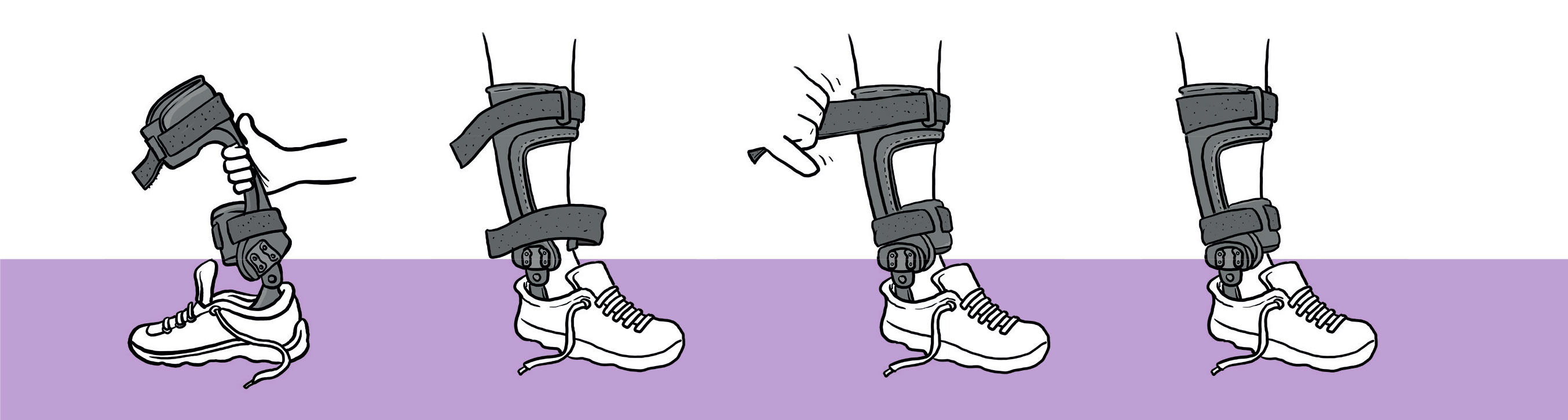

Putting on Step-On AFOs with a single hinge (100MH / 100LH)

It’s usually easier to put the brace in the shoe first, before putting your foot in.

• Put the brace in the shoe.
• Slide your foot into the shoe and secure the top and bottom strap.

Taking your brace off

Simply carry out the instructions to put your brace on, in reverse order.

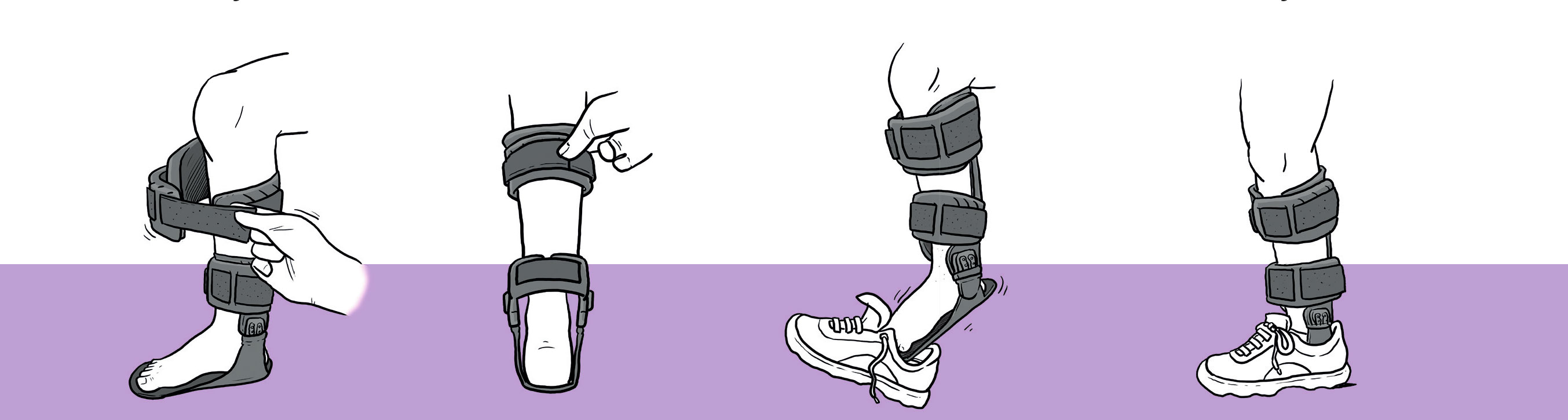

Putting on Step-On AFOs with a dual hinge (200DH)

The dual hinge Step-On is bulkier than the single hinge models, so it’s usually easier to put it on your leg first, before putting the shoe on

• Put your foot in the brace and secure the top and bottom strap.
• Slide your foot and brace into the shoe (use a shoe horn if necessary).

Taking your brace off

Simply carry out the instructions to put your brace on, in reverse order.
