Step-On^®

Active Dynamic AFO

The Step-On family of products is a range of innovative ankle-foot-orthoses (AFOs) for the treatment of drop foot. The unique feature of these AFOs is that they are active dynamic, offering mechanical assistance by a spring mechanism to assist dorsiflexion, which can be finely adjusted and quantified. This differentiates them from passive dynamic AFOs which rely on the stiffness of the material to assist / resist movement and with that stiffness being non-adjustable, or from static AFOs which allow no movement or assistance. This way Step-On AFOs allow essential sagittal plane kinematics during the gait cycle, while at the same time providing the exact amount of control required by each patient, at every stage of their rehabilitation programme.

The Step-On AFOs incorporate unilateral or bilateral spring-loaded hinges. Those allow a range of movement (ROM) between 22° dorsiflexion and 11° plantarflexion. This ROM enables improved initial heel contact and foot clearance during swing phase, better step clearance when climbing stairs and the ability to walk up / down hill, or with a small heel, without affecting the tibial alignment. It also allows the knee to flex past 90° while sitting, which promotes independence in sitting to standing for patients.

The adjustable dorsiflexion assistance allows precise tuning of the AFO according to the patient’s ability to activate their dorsiflexor muscles (to prevent masking this activity), the muscle tone of the plantarflexors, their body weight, usual walking speed, etc., ensuring optimal gait biomechanics. It also offers the unique capability of altering the assistance according to the patients’ needs, as their walking ability fluctuates day-to-day and even morning to evening. The dorsiflexion assistance is adjusted easily with an Allen key that increases or decreases the spring tension within the hinge.

The Step-On AFOs feature slimline hinge and foot plate design and come with ¾ length foot plates, allowing them to fit easily in different everyday and formal shoes. They can also be combined with foot orthoses (insoles). The tibial shell is covered with a lining, which can be removed hand washed and air dried. All hook-and-loop straps are sufficiently long and can be cut to the appropriate length during fitting. Furthermore, the straps are fitted with foam pads, ensuring comfort and enhancing skin integrity. Both the tibial shell and foot plate are made of high-quality polypropylene. They can be easily formed to shape using mild heat treatment and they can be trimmed back by an orthotist or orthopaedic technician.

The hinges are protected by a neoprene sleeve, in order to avoid contamination with debris during daily use. Furthermore, the hinge system can be fully disassembled for cleaning and servicing, while a full list of spare parts is provided, to ensure a prolonged lifetime for all Step-On AFOs.

Easy adjustment of spring tension with an Allen key

Better step-clearance when climbing stairs

Step-On features:

Easily adjustable dorsiflexion assistance allows continuous optimisation of the AFO’s biomechanical characteristics to match the patient’s gait, throughout the rehabilitation process
Available with lateral, medial, or bilateral hinges
Extremely lightweight, polypropylene construction
Unilateral hinge AFOs fit easily in standard footwear - no need for larger shoe size
Can be easily thermoformed to shape or trimmed back.
High-quality liners and foam pads for enhanced skin integrity and comfort
Hook-and-loop straps allow easy fastening of the orthosis
Liners and foam pads can be removed and cleaned easily
Hinges are protected from debris by neoprene sleeves
Hinges can be disassembled for cleaning and servicing
Full list of spare parts is available
Available in a range of sizes to fit individuals up to 100 Kg

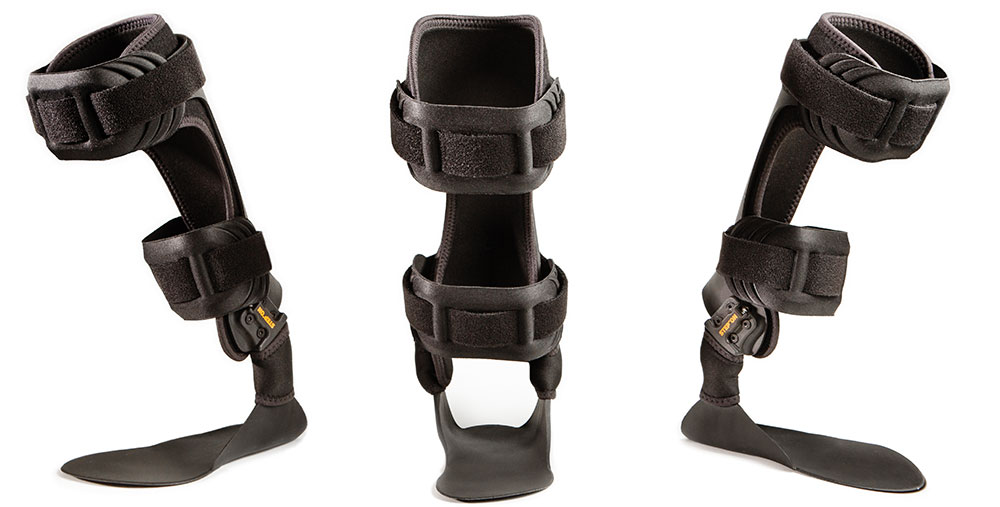

Product range

There are three AFO products: Step-On 100 LH, suitable for most cases of drop foot; Step-On 100 MH designed for patients with correctable varus (supination) and/or prominent lateral malleolus. Step-On 200 is suitable for cases of drop-foot with excessive correctable varus/ valgus (supination/pronation) of the foot.
